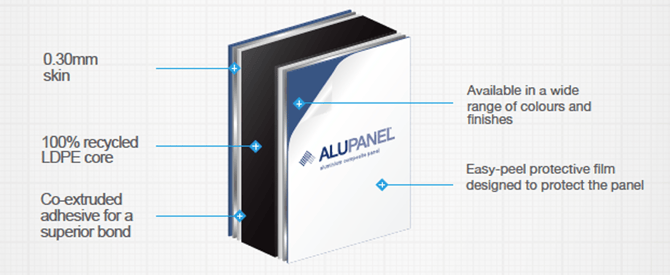

What is ACM (aluminium composite) ?
Aluminium Composite Material (ACM) is a panel made from two thin aluminium skins bonded to a polyethylene (PE) core. It’s widely used in signage because it’s lightweight, rigid, and easy to fabricate.
Not all ACM is the same though—the key differences come down to skin thickness, intended use, and manufacturing quality.
MultiPanelUK Range – What the Names Mean
MultiPanelUK organise their ACM range by how it’s meant to be used:
- X-Lite / X → Budget, flat signage only
- Lite / A-Lite Digital → Better finish, print-focused panels
- Smart / Alupanel → Fabrication (folding, trays, built-up signs)
- Traffic → Road sign-specific panels
A simple way to think about it:
- Flat job? → X, Lite, A-Lite
- Folding or trays? → Smart or Alupanel
- Road signs? → Traffic
Why Aluminium Skin Thickness Matters
This is the most important technical difference.
- Thinner skins (0.12–0.15mm)
- Cheaper, lighter
- Good for temporary or flat signs
- Not suitable for folding
- Mid skins (0.20–0.22mm)
- Better rigidity and print quality
- Ideal for general signage
- Thicker skins (0.26–0.30mm)
- Strong, rigid, and fabrication-friendly
- Required for trays, returns, and folding
Rule of thumb:
If you’re folding it, don’t go below ~0.25mm skin.
Common Sign Uses by Grade
- Economy ACM (X-Lite / X)
Short-term boards, hoardings, temporary signage - Standard / Print ACM (Lite / A-Lite Digital)
Business signs, wall panels, printed graphics - Fabrication ACM (Smart / Alupanel)
Folded trays, fascia signs, built-up lettering - Traffic ACM
Road signs (temporary and permanent)
Why MultiPanelUK is Considered Premium
MultiPanelUK stands out for a few practical reasons:
- UK manufacturing → consistent supply, reliable quality
- Recycled PE core (LDPE) → more sustainable
- High quality control → consistent thickness, flatness, finish
- Lower transport impact vs imported panels
In simple terms:
You’re getting more consistency, better fabrication performance, and fewer job failures.
Most Common ACM Sign Applications
ACM is used across nearly all sign types:
- Road traffic signs
- Shop fascia & business signage
- Hoarding boards
- Folded trays & pan signs
- Wall-mounted panels
- Cut lettering & shapes
Quick Comparison Table
| Grade Type | MultiPanelUK Products | Skin Thickness | Best For | Avoid Using For |
|---|---|---|---|---|
| Economy | X-Lite, X | 0.12–0.15mm | Temporary signs, hoardings | Folding, trays |
| Standard / Print | Lite, A-Lite Digital | 0.20–0.22mm | Business signs, print work | Heavy fabrication |
| Fabrication | Smart, Alupanel | 0.26–0.30mm | Trays, fascia, built-up signs | Budget flat jobs |
| Traffic | Traffic Temp / Perm | 0.20–0.30mm | Road signs | General signage |
Each Multipanel Substrate Details
Alupanel X-Lite – Ultra-Economical Flat Panel
Alupanel X-Lite is the most lightweight and cost-effective ACM in the range, designed for temporary and short-term flat signage. It provides a stable surface for printing and vinyl application while keeping material costs to a minimum. Ideal for promotional boards, POS, and short-life displays where fabrication is not required.
Alupanel X – Economical Flat Sign Panel
Alupanel X is an entry-level ACM for everyday flat applications, offering improved strength over X-Lite while remaining highly cost-effective. It is suitable for hoardings, wayfinding, and general signage, delivering a dependable surface for print and vinyl where fabrication is not needed.
Alupanel Lite – Reliable Everyday Sign Panel
Alupanel Lite is a versatile, general-purpose ACM offering a balance between cost and performance. It provides enhanced rigidity and a consistent surface finish, making it ideal for business signage, wall panels, and longer-term hoardings. Designed for flat applications where a better finish and durability are required.
Alupanel A-Lite Digital – Premium Print Surface
Alupanel A-Lite Digital is a high-quality print-focused ACM, engineered to deliver exceptional flatness and surface consistency. It is ideal for direct-to-substrate digital printing, screen printing, and premium graphics, where colour vibrancy and finish are critical. A strong choice for high-end visual work.
Alupanel Smart – Lightweight Fabrication Grade
Alupanel Smart is a true fabrication-grade ACM designed for routing, folding, and forming, while maintaining a lighter weight than full Alupanel. It is well suited for folded trays, fascia signs, and built-up elements, offering a practical balance between performance and efficiency.
Alupanel – Premium Fabrication Panel
Alupanel is the flagship ACM in the range, designed for high-quality fabrication and long-term signage. With thicker aluminium skins and superior rigidity, it is ideal for folded trays, fascia panels, and premium business signage where strength, finish, and durability are essential.
Alupanel Traffic – Road Sign Specific ACM
Alupanel Traffic is engineered specifically for road traffic sign manufacture, available in both temporary and permanent grades. It is designed to meet the demands of regulated signage applications, providing durability, consistency, and compatibility with reflective films and standard fixing systems. This is the correct choice for fixed road signage rather than general display work.
Simple Takeaway
- Pick ACM based on the job, not just price
- Skin thickness = performance
- Flat sign? Go lighter
- Fabrication? Go thicker
- Premium panels reduce problems on site
